3 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine

ข้อมูลพื้นฐาน
Place of Origin: China
ชื่อแบรนด์: CBFI
ได้รับการรับรอง: CE, ISO
Model Number: TV10-TV300
Minimum Order Quantity: 1 set
ราคา: USD 9500~10000000
Packaging Details: wooden case
Delivery Time: 35 days after the deposit
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 50 to 60 sets/month
ข้อมูลรายละเอียด
Compressor: Germany Bitzer compressor tube ice diameter: 35mm, 28mm, 22mm
Evaporator: Stainless steel 304 seamless pipe Cooling way: Water cooling
Daily Capacity: 10,000kg/24h Control system: Touch screen with English
PLC: Siemens system Origin: Guangzhou, China
Material: 304 Stainless steel Refrigerant: R404A
แสงสูง:

Tube Ice Machine

,

Ice Tube Maker


รายละเอียดสินค้า

CBFI 3 ton, 5 ton, 10 ton, 20 ton, 30 ton Tube Ice Machine Hollow Crystal Tube Ice​

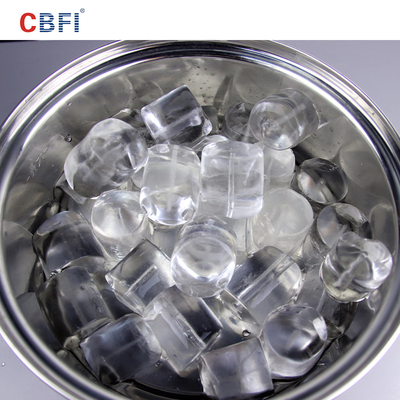

1. Edible hollow tube ice

3 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine 0

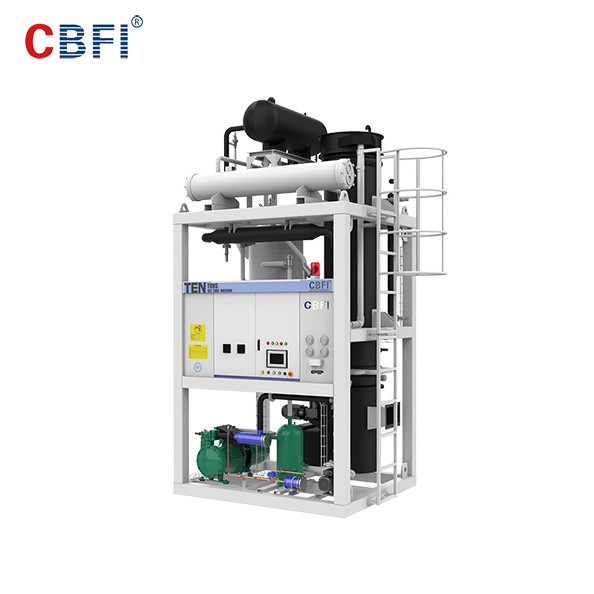

2. CBFI tube ice machine pictures

3 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine 1



5 ton tube ice machine



3 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine 2



10 ton tube ice machine



3. Machine parameter





Model
Ice Making
Capacity
Rated
Power



Circulating Water
Pump Power
Cooling Water Pump Capacity
Cooling Fan Capacity
Ice Cutter Motor
Dimension
Weight of Machine
No.
Ton/24h
kw
kw
kw
kw
kw
W*H*L(mm)



KG
TV10
1.0
4.28
0.55
1.1
0.18
0.75
1100*900*1760
900
TV20
2.0
7.77
0.55
1.5
0.37
0.75
1250*1000*1950
1200
TV30
3.0
12.33
1.1
1.5
0.56
0.75
1400*1100*2200
1500
TV50
5.0
21
1.5
2.2
0.75
1.5
1600*1400*2250
1800

 TV100

    10.0

29.2
1.5
4
1.5
1.5
1200*1200*3100

 2300*1550*1800

3500
TV150
15.0
49
2.2

5.5

1.5
1.5

1500*1200*4500

2700*1950*2250
4250
TV200
20.0
58.5
1.5
5.5
2.2
2.2

1600*1300*4700

3100*2200*2250
6500
TV300
30.0
87.6
2.2
15
2.2
2.2
3000*2200*2500

 2200*1900*6200

7200


4. Machine feature

 * Ice dropping design: protect ice cutter and make the ice cutter motor

   running well.

 * Unique Design of Middle Partition: no gap between the ice making tube

   and middle partition panel, so the ice dropping smoothly.

 * Ice Tube Evaprator:

   ice making tube: 1.5 mm thickness Stainless Steel 304;

   evaporator floor : 10 mm thickness Stainless Steel;

   middle partition: 35 mm thickness Carbon Steel;

   evaporator wall : 8 mm thickness Carbon Steel.

* Heat exchanger: improve the refrigerantion efficiency. Energy saving: low

   to 80 kw.h per ton ice.



  3 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine 33 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine 4



5. More details

  * Automatic ice out let: no need hand operation, save labor cost.

  * PLC controller: german siemens PLC controller control automatically,

    only need 2 people operate ( one people to pack the ice, one people to

    put the ice into cold storage).

  * Japan 304 SUS seamless steel pipe: make the ice more clean and make

    sure the machine have longer life span.

  * Different ice size for choice : 22mm , 28mm and 35mm .





3 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine 5



   3 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine 6





6. Ice Tube Machine Main components

Item No. Name of Components Brand Name
1 Compressor Germany Bitzer/Bock
2 PLC Germany SIMENS
3 Expansion valve Denmark DANFOSS
4 Solenoid valve of Water supply Denmark DANFOSS
5 Oil filter America Emerson
6 High and low pressure meter Switzerland REFCO
7 Electrical components South Korea LG (LS)
8 Circulating water pump China Nan Fang
9 Evaporator Material Stainless Steel 304 (SUS304)



7. Customer cases

CBFI 30 ton tube ice machine in Malaysia

3 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine 7



CBFI 10 ton and 15 ton tube ice machines in Indonesia

3 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine 8
