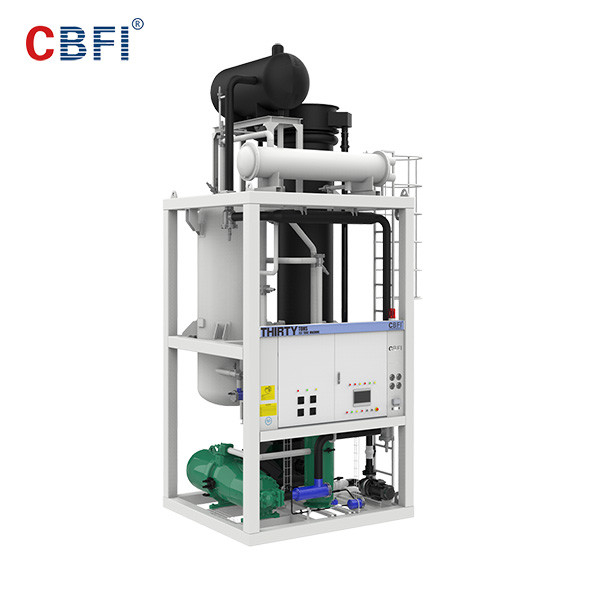

Ice Making Evaporator / Tube Ice Maker Machine with Touch Screen

ข้อมูลพื้นฐาน
Place of Origin: China
ชื่อแบรนด์: CBFI
ได้รับการรับรอง: CE, ISO9001,ISO14001
Model Number: TV100, TV200, TV300
Minimum Order Quantity: 1 set
ราคา: USD 1~100000000
Packaging Details: wooden case
Delivery Time: 40 days after receiving the 30% deposit
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 50 sets/month
ข้อมูลรายละเอียด
Condition: New Compressor: Bitzer Semi-hermetic Piston type
Daily output: 1,000kg ~ 30,000kg Tube ice diameter: 22mm, 28mm, 35mm
Control: Germany Siemens Electrical accessories: South Korea LG
Expansion valves: Denmark Danfoss Solenoid valves: Italy Castal
Operation: Touch Screen
แสงสูง:

Tube Ice Machine

,

Ice Tube Maker


รายละเอียดสินค้า

CBFI Stainless Steel 304 Ice Making Evaporator with Insulation, Tube Ice Making Machine Good Price

Model Ice Making Capacity Rated Power Circulationg Water Pump Power Cooling Water Pump Capacity Cooling Fan Capacity Ice Cutter Motor Machine Dimension Weight of Machine
No. Ton/24h Kw Kw Kw Kw Kw WxHxL(mm) KG
TV10 1.0 4.28 0.55 1.1 0.18 0.75 1100x900x1760 900
TV20 2.0 7.77 0.55 1.5 0.37 0.75 1250x1000x1950 1200
TV30 3.0 12.33 1.1 1.5 0.56 0.75 1400x1100x2200 1500
TV50 5.0 21 1.5 2.2 0.75 1.5 1600x1400x2250 1800
TV100 10.0 29.2 1.5 4 1.5 1.5

1200x1200x3100

2300x1550x1800

3500
TV150 15.0 49 2.2 5.5 1.5 1.5

1500x1200x4500

2700x1950x2250

4250
TV200 20.0 58.5 2.2 5.5 2.2 2.2

1600x1300x4700

3100x2200x2250

6500
TV300 30.0 87.6 2.2 15 2.2 2.2

3000x2200x2500

2200x1900x6200

7200



Ice Making Evaporator / Tube Ice Maker Machine with Touch Screen 0

CBFI tube ice machine aplication



Ice Making Evaporator / Tube Ice Maker Machine with Touch Screen 1



Ice Making Evaporator / Tube Ice Maker Machine with Touch Screen 2

Machine details:



1.Standard wooden case.
2.Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water
fittings.
3.Machine come into use, customer only need prepare power for the machine.
4.All required components for installing the machine will be provided.

Ice Making Evaporator / Tube Ice Maker Machine with Touch Screen 3Ice Making Evaporator / Tube Ice Maker Machine with Touch Screen 4

Machine feature

* Automatic ice out let: no need hand operation, save labor cost.

* PLC controller: german siemens PLC controller control automatically,

only need 2 people operate ( one people to pack the ice, one people to

put the ice into cold storage).

* Japan 304 SUS seamless steel pipe: make the ice more clean and make

sure the machine have longer life span.

* Different ice size for choice : 22mm , 28mm and 35mm .





Ice Making Evaporator / Tube Ice Maker Machine with Touch Screen 5



Ice Making Evaporator / Tube Ice Maker Machine with Touch Screen 6





 Ice Tube Machine Main components

Item No. Name of Components Brand Name
1 Compressor Germany Bitzer/Bock
2 PLC Germany SIMENS
3 Expansion valve Denmark DANFOSS
4 Solenoid valve of Water supply Denmark DANFOSS
5 Oil filter America Emerson
6 High and low pressure meter Switzerland REFCO
7 Electrical components South Korea LG (LS)
8 Circulating water pump China Nan Fang
9 Evaporator Material Stainless Steel 304 (SUS304)



Customer cases

CBFI 30 ton tube ice machine in Malaysia

Ice Making Evaporator / Tube Ice Maker Machine with Touch Screen 7



CBFI 10 ton and 15 ton tube ice machines in Indonesia

Ice Making Evaporator / Tube Ice Maker Machine with Touch Screen 8
